YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser

Name: YSD542 Two Working Table 3 Axis Glue Dispensing Machine Glue Dispenser
Brand: RKENS
Price: 1 USD

China YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser factory

Brand Name : RKENS

Model Number : YS-D542

Place of Origin : China

MOQ : 1SET

Payment Terms : T/T, Western Union

Supply Ability : 300 SETS per month

Delivery Time : 7-10 days

Packaging Details : Wooden case

Name : 3 Axis Glue Dispensing Robot

Working table : 2

Contact Now

Two Working Platform 3 Axis Glue Dispensing Machine

Intro:

This glue dispensing machine YS-D542 has two working platforms. The automatic machine that drips and coats the fluid on the surface of the product or inside the product can realize three-dimensional and four-dimensional path dispensing, precise positioning, precise glue control, no wire drawing, no glue leakage, and no glue dripping. The glue dispenser is mainly used for the precise point, injection, coating and dripping of glue, paint and other liquids in the product process to the precise position of each product, which can be used to achieve dots, lines, circles or arcs.

220V/110V 50HZ/60HZ
3 Axis to control dispensing
English language operation
LCD touch panel display

Suitable:

Working platform can be customized accroding to customer's product and needs.
Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

Technical Parameters:

Glue dispensing machine working platform can be customized according to customers' need.

Model	YS-D542
Working area(XYZ)	200x400x100MM
Working table	2
Control system	Independent R D
Driver	Stepper motor+sliver guideway+timing belt
Repeatability	+/-0.02-0.05mm
Air pressure	0.4-0.7Mpa
Speed	500mm/s
Power	220/110V 50/60HZ 350W
Max load	XYZ 10kg
Display	5.7inch screen
Programme method	Screen operation /connect to PC
File total	Number unlimited,16M
I/O signal	16 inputs/16 outputs
Weight	80kg
Size	750720680

Features:

1) Full automatic robot glue dispenser, 3 axis. Locate precisely.

2.) Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
3) Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
4) Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
5) Can be equipped with several heads for working at the same time to increase dispensing efficiency.
6 ) Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

Pictures of Robot glue dispenser, automatic glue dispensing machine

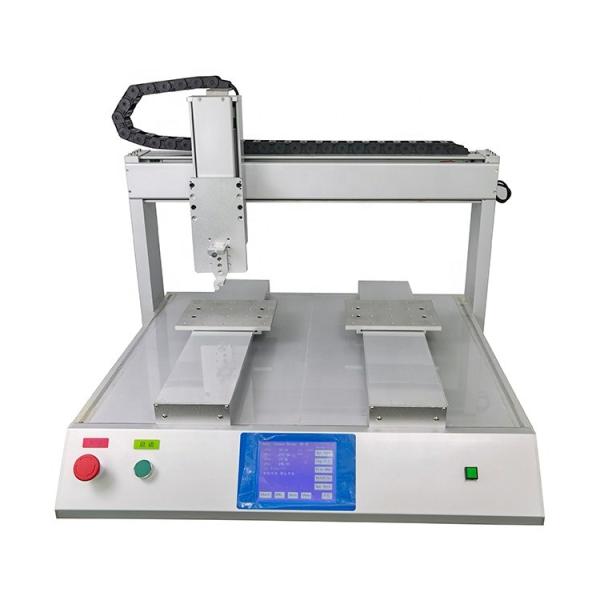

YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser

Our Glue Filling machines

YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser

YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser Images
