Large Flow Glue Potting Filling Machine With AB Two Components Mixing System
Intro:
Automatic Two Parts Liquid Glue Potting Filling Machine works for AB two-component glue. It uses precise gear metering pump or screw pump to measure, extract and mix according to the specified ratio.
An automatic machine that drips, coats, and pots liquid on the surface or inside of the product to make it a device for sealing, fixing, and waterproofing.
Three pressure tanks: One is for A epoxy resion, One is For B hardener, One is for clearning liquid.
Machine video: https://youtu.be/FF1JyF3Hy9c
Suitable:
Mainly widely used in the automotive electronics industry, LED industry, handicraft industry. Suitable for various proportions of epoxy resin or polyurethane,
Efficient potting of crystal glue; it has also been widely used in other industries.
Traditional manual glue filling has many disadvantages:
1. Completely manual operation, inaccurate mixing ratio, uneven glue amount, resulting in defects such as non-drying of the glue, which reduces the qualified rate of the product.
2. The manual filling speed is slow and the output cannot be raised.
3. Manual recruitment and management are difficult.
4. The waste of glue caused by pure artificial is large.
Available glue:
Suitable for various proportions of epoxy resin or polyurethane,
Efficient potting of crystal glue
Features:
- 1. 5. 7-inch touch screen operation, can be equipped with computer operating software, can draw CAD pictures, can be operated by a single machine, easy to learn and understand;
2. It has the functions of continuous interpolation of points, lines, surfaces, arcs, circles, irregular curves, and three-axis linkage, which can adapt to any irregular object filling;
3. The hard disk has a large storage memory capacity, unlimited storage of programs, no need to reprogram, and the software has functions such as area array, translation and rotation calculation;
4. The glue volume, glue speed, glue dispensing time, and glue stop time can all be parameterized, the glue output is stable, and glue is not leaked;
5. The three functions of glue dispensing, glue filling and track potting are integrated and fully automated;
6. Proportioning according to needs, realizing glue filling while mixing, saving glue to the greatest extent;
7. Glue A and Glue B are stored separately to ensure that the glue does not solidify after being placed for a long time;
8. Dynamic or static mixing can be used, mixing uniformly and fully;
10. Unique control system, not affected by air pressure, avoiding uneven glue output, wire drawing, bubbles, etc.;
11. The Z-axis height adjustment device can adapt to the work of different heights;
1 3. Optional glue mixing, heating and reserved vacuum defoaming function, suitable for different types of infusion processes
Technical Parameters:
Full Automatic Two Parts Liquid Glue Potting Filling Machine With Mixing Ratio
Model: YS-D331/YS-DD441/YS-D551 /YS-D542
| Mixing ratio | 1: 1-1: 10 Adjustable |
| Glue filling speed | 0.5-15 g adjustable (according to glue characteristics) |
| Glue filling accuracy | Glue amount ±2% Proportion: ±2% |
| 3 axis working area | XYZ 300x300x100MM (can be customized), 400x400x100mm, 500x500x100mm, 250(X)x400(Y)x100(Z)MM |
| Glue viscosity | <=2000CPS |
| Operation mode | Manual Or automatic |
| Glue ratio mixing | Pump measurement |
| Programming method | Teaching programming |
| Mixing system | static/dynamic mixing |
| A pump | gear pump/screw pump |
| B pump | gear pump/screw pump |
| Pressure tank | 10L, 20L, 30L optional |
| A B plastic bucket mixing | Optional |
| A B plastic barrel heating | Optional |
| Defoaming function | Optional |
| Washing bucket capacity | 5L |
| Power voltage | 220V/110V 50HZ/60HZ |
|
|

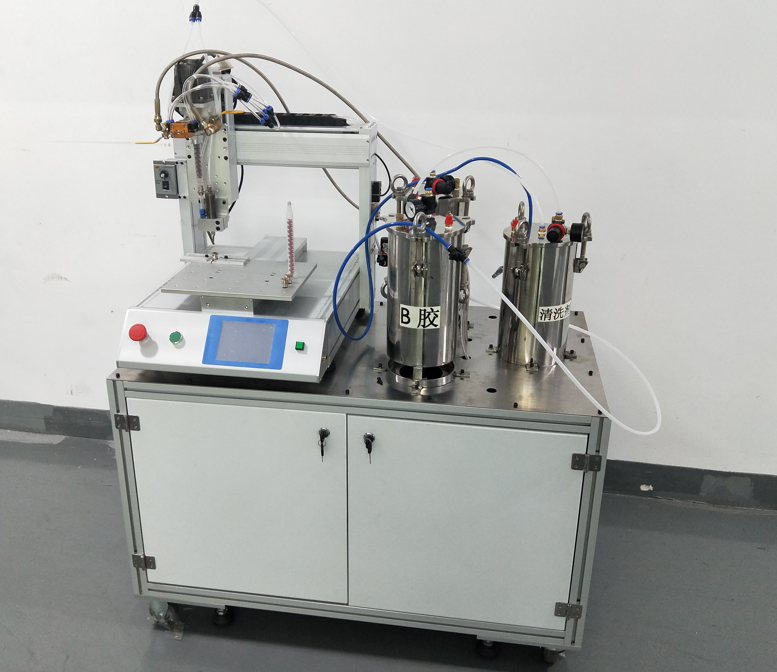

Large Flow Glue Potting Filling Machine With AB Two Components Mixing System Images
|
