RS-907FK Taped Resistor/Diode Lead Cutting And Bending/Forming Machine

Name: RS907FK Taped ResistorDiode Lead Cutting And BendingForming Machine
Brand: RKENS
Price: 1 USD

China RS-907FK Taped Resistor/Diode Lead Cutting And Bending/Forming Machine factory

Brand Name : RKENS

Model Number : RS-907FK

Place of Origin : China

MOQ : 1 SET

Supply Ability : 300 SETs per month

Delivery Time : 5-7 days

Packaging Details : Wooden case

Name : Axial lead cutting machine

Usage : Cut, bend and Kink

Lead size : 0.5-0.8mm or 1.0-1.3mm

Other shapes : F, U, FK, UK,

Contact Now

RS-907FK Taped Resistor/Diode Lead Cutting And Bending/Forming Machine

Intro:

RS-907FK is a fast speed and motorized axial lead forming machine for taped components. Forming tool can be customized as per customers' need.

Suitable:

RS-907FK works for taped axial components only . Optional feeder bowl can work for loose components
Suitable for taped axial components, such as resistor, diode, fuse, etc
Cutting, F-Forming And Kinking
Suitable for 0.5-0.8MM lead , or 0.8-1.3mm lead diameter. Two size can not use same machine.

Specification:

Model	RS-907FK
Name	Motorized Lead Cutting Forming Bending Machine For Taped Axial Components
Suitable for	taped resistor/diode axial components. Lead diameter: 0.5-0.8MM or 1.0-1.3MM
Function	Cut, F-Forming, Kinking
Voltage	220V 50HZ/60HZ
Weight	97KG
Efficiency	3600-4500PCS/H

Features:

1.For tape diode/resstor. Can make cutting , bending and kinking.

2.Blade is imported SKD-11 material, durable.

3.Will not damage resistor and diode.

4.The production capacity is 3600-4500PCS/H . Adjustable speed, high efficiency.

5. Forming tool is customized according to customers' need.

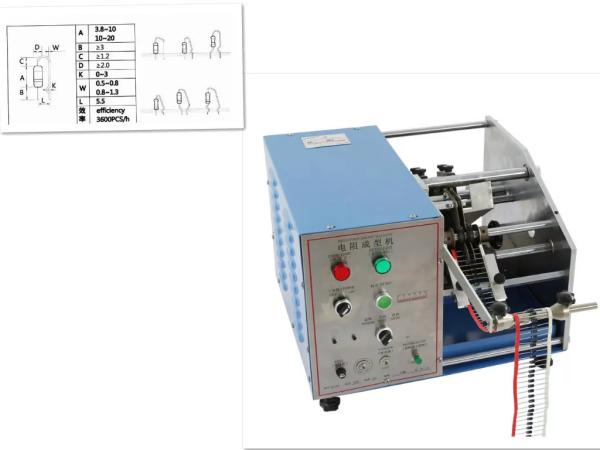

Forming size and samples

RS-907FK Taped Resistor/Diode Lead Cutting And Bending/Forming Machine

Machine detail

RS-907FK Taped Resistor/Diode Lead Cutting And Bending/Forming Machine

Machine video:

RS-907FK Taped Resistor/Diode Lead Cutting And Bending/Forming Machine Images
